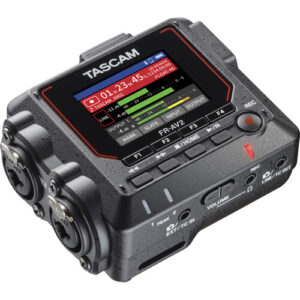

TASCAM FR-AV2 Compact 32-Bit-Float Field Recorder and Timecode Generator
Description
The TASCAM FR-AV2 is an ultra-compact, professional 2-channel field recorder and timecode generator purpose-built for videographers, filmmakers, and content creators. Utilizing advanced 32-bit float point recording technology combined with dual analog-to-digital converters (ADCs), the FR-AV2 captures an incredibly wide dynamic range from a soft whisper to a roaring engine without the risk of digital clipping, completely eliminating the need to set input gains manually. Equipped with two high-grade Ultra HDDA microphone preamps, the recorder guarantees clean, ultra-low-noise audio capture with an EIN of -127 dBu. For advanced camera synchronization, it features a built-in high-accuracy Temperature-Compensated Crystal Oscillator (TCXO) that reads, generates, and jam-syncs timecode via dedicated 3.5mm inputs/outputs. Wrapped in a rugged, lightweight fiberglass enclosure optimized for camera rigs, it also functions as a 2-in/2-out USB-C audio interface and offers automated 20-second safety file saving to prevent unexpected data loss in the field.
Technical Specifications
| Feature | Specification |
|---|---|
| Number of Channels | 2 channels (2 recordable tracks) |
| Recording Formats | WAV, BWF (Broadcast Wave Format) |
| A/D Resolution / Bit Depth | 24-bit, 32-bit Float |
| Sampling Frequencies | 48 kHz, 96 kHz, 192 kHz |
| Microphone Preamps | 2x TASCAM Ultra HDDA preamps |
| Equivalent Input Noise (EIN) | -127 dBu or less |
| Dynamic Range | 132 dB or higher |
| Analog Inputs | 2x XLR/TRS Combo inputs (Mic/Line) 1x 3.5 mm TRS stereo mini-jack (Camera/EXT/TC IN with plug-in power) |
| Analog Outputs | 1x 3.5 mm TRS mini-jack (Camera/LINE/TC OUT) 1x 3.5 mm TRS stereo headphone jack |
| Phantom Power | +24V / +48V (Selectable per channel) |
| Timecode I/O | Dedicated 3.5mm Input & Output (SMPTE LTC) Frame rates: 23.98, 24, 25, 29.97, 29.97DF, 30 fps |
| Audio Interface Mode | 2-in / 2-out via USB-C (Supports 24-bit / 32-bit float) |
| Wireless Connectivity | Bluetooth control via optional AK-BT2 adapter (sold separately) |
| Storage Media | microSD, microSDHC, microSDXC (up to 512 GB) |
| Display | 2-inch Color LCD display |
| Weight | 195 g (Without batteries) / 267 g (With batteries) |
