Mackie 402VLZ4 4- Channel Audio Mixer
Description

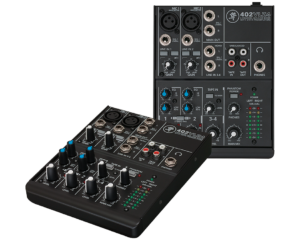

The Mackie 402VLZ4 is an ultra-compact 4-channel analog mixer designed for professional, low-input applications requiring premium audio performance. Built with Mackie’s signature “Built-Like-A-Tank” rugged steel chassis and powder-coat finish, this high-headroom, low-noise mixer features two boutique-quality Onyx microphone preamps delivering up to 60dB of gain and 128.5dB of dynamic range. It features sealed rotary controls that resist dust and grime, selectable instrument-level inputs on the first two channels to bypass external DI boxes, a dedicated 2-band equalizer, an 18dB/octave 100Hz low-cut filter, and high-visibility 8-segment stereo meters for clear visual feedback.
Technical Specifications
| Feature | Specification |
|---|---|
| Mixer Type | Analog |
| Total Channels | 4 Channels |
| Microphone Preamps | 2 x Onyx Mic Preamps (XLR) with +48V Phantom Power |
| Audio Inputs | 2 x 1/4″ Line/Instrument (Channels 1-2), 2 x 1/4″ Line Stereo (Channels 3-4), 2 x RCA (Tape Input) |
| Audio Outputs | 2 x 1/4″ Main Out, 2 x RCA (Tape Output), 1 x 1/4″ Headphone Output |
| EQ Bands | 2-band EQ (High Shelving ±15 dB @ 12 kHz, Low Shelving ±15 dB @ 80 Hz) on Channels 1-2 |
| Frequency Response | 20 Hz to 50 kHz (+0, -1 dB); <10 Hz to >100 kHz (+0, -3 dB) |
| Dimensions & Weight | 7.3″ x 5.8″ x 1.6″ (186mm x 147mm x 41mm); 2.5 lbs (1.1 kg) without power supply |
